TraMax LLP is acknowledged for manufacturing Industrial Machines that are used in the making of various kinds of Paper Products including Paper Bags, Paper Cups, Tissue Paper, Dining Table roll, etc. Serving our clients as a manufacturer and supplier since our company was incepted in 2020, we are rapidly growing in our domain. Using best components and raw material in the manufacturing process, we have consistently proved our domain expertise and formed business relations for years.

TraMax LLP offering you a complete choice of products which include Paper Cup Making Machine, Paper Bag Making Machine , Electrical Eyelet Punching, Napkin Tissue Paper Making Machine & Dining Table Roll Making Machine

Napkin Tissue Paper Making Machine

Parent Roll Diameter	1200 MM
Printing Unit	Single / Double Colour Printing
Embossing Unit	Single / Double Embossing
Folding Size	1/4 Fold
Speed	Variable Speed
Production Capacity	250000 Sheets / 8 Hrs
Power Required	220 VAC Single Phase
Phase	Single/Three Phase
Voltage	440V
Controlling System	Separate Control Panel
Transmission	Timing Belts
Counting	Digital Auto Counter
Embossing Design	As Per Requirement
Machine Motor	2 HP/DC Motor
Band Saw Cutter Motor	2 HP/AC Motor
Speed Controller	Variable Pulley
Weight	1800 KG Approx.

Paper napkins are widely used on the life, More and more tissue paper manufacturers investing in creating paper napkin. As a top-brand tissue machine manufacturer, We can provide You a paper napkin making machines at competitive market price.

Based on our Machine designing and producing capacity, Machine is mainly used to produce disposable tissue paper. According to different demand, it is able to produce different color paper napkin, and the embossing design and print design can be decide by your requirement. It is especially apply in printing the patterns, brand, and etc. And it is made up of speed regulation technology, convey system, printing, embossing system, folding system, counting system, cutting system etc. It can be used with pneumatic working parts, pure and various colors printing system according to the consumers’ demand

Features of the Machine

Paper breakage sensor
Paper count Sensor
Reel Adjuster
High Quality BandSaw cutting system
Online printing registration.
Export Quality Embossing Roller

Heavy Duty
High Production
Mild Steel plates and section are used
High Quality electrical are used.
Parts of machine is hard chrome
DC Drive system or AC Drive System As per requirement

A paper cup is a single-use cup manufactured from paper and to prevent the passage of liquid from a paper cup, it’s usually coated with PE(polyethylne). Paper cups are manufactured from recycled paper and have various uses around the world . In a wide range of customs and social classes their main use is to quench thirst. Paper cups have different distinctive appearances, sizes and designs with each type of design having an intended purpose depending on the type of liquid they hold and on occasions they are used.

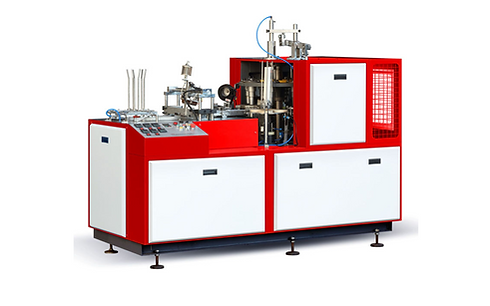

Normal Speed Paper Cup Making Machine (TMPC 4050)

Production Capacity	40 - 50 Cups/Min
Required Paper	Single Side PE / PLA Coated
Paper Thickness	150 - 210 GSM
Cup Size	80 ML - 330 ML
Electrical Supply	Three Phase / Single Phase
Power Cunsumption	3.5 KW
Machine Weight	2000 Kgs Approx.
Operating Mode	Manual & Auto Mode
Machine Dimension	2700 X 1400 X 1900 MM (LWH)
Automation Control	By PLC
Number of Sensor	4

Auto & Manual Mode Operations
PLC Automation Control
Rugged Frame Structure
Branded Motor with 5 Star Rating
4 Nos of Sensors
Auto Sensor stops the machine when cup is not released
Auto Stop in case of malfunction
Runs in both Single Phase and Three Phase

High Speed Paper Cup Making Machine (TMPC 9010)

Paper Cup Size	80 - 250 ML
Paper Cup Bottom Diameter	29 - 56 MM
Paper Cup Height	38 - 92 MM
Production Speed (Per Minute)	90 - 130 Cups
Production Speed Setting	VFS Remote
Sealing Technology	Heater / UltraSonic
Cup Counting System	Automatic
Cup Strand System	Automatic
Fault Detection	Manual with Alarm
Indexing Machanism	Barel Cam
Power Supply	Three Phase
Electric Consumption Per Hour	3 Phase
Total Motor Power	4 HP
Total Power Required	4 KW
Machine Weight	2000 KG Approx
Machine Dimensions (LXWXH)	2115 X 1700 X 1000
Top Curling Lubrication	Paraffin Oil
Machine Lubrication Oil	Hydrawlic Oil

Ideal for single PLA/PE coated paper Cup, TP 9010 machine is an automatic environmental machine with multi-running positions. This machine runs a whole procedure of paper-feeding, cup-blank wall sealing, oiling, bottom-punching (Knurling), heating, rolling, rimmimg, rounding (curling), and tripping. This machine is used for producing a variety of cups depending upon the desired dimensions of the cup such as volume (ml) Depth, top diameter, bottom diameter height, and depth of the bottom.

Machine is customizale either for automatic or manual modes of operation.
An automatic oil spray lubrication system ensures low wear rate and greater life cycle of the parts.
All the cams are hardend to minimize the wear and tear in long run.
Based on Advanced PLC (program Logic Control) technology.
Advance sensor-based technology automatically cut off the system when the machine is not in operation which reduce paper wastage.
Automatic cup-blank feeding and sealing.
Automatic cup-bottom feeding, punching, folding and Knurling.

Automatic cup-top edge curling and cup counting.
Step-less speed management.
Cup-blank and Cup-bottom sealing is done by auto cut-off feature based advance heaters.
Very easy in operation (one operator is sufficient).
Easy exchangable mould prooduce different size paper cups.
Pneumatic operations do not require compressed air.
A well engineerd "Barrel Cam Mechanism" ensures precise movement and functioning of turn tables.
Machine is designed with 3 turning plates.

Looking for Paper Bag Making Machines..? We TraMax LLP is the leading in supplying high - quality Paper Bag making machine Manufacturers in Kerala at an affordable cost. Our Paper bag making machines are robust with user-friendly features for easy operations. Our Paper bag making machines are manufactured using premium raw materials sourced from reputed vendors for hassle-free operations. We believe in quality and our team is strictly following the stringent quality measures to ensure the best products reaches to our customer's hands. We know with our decades of experience and exposure that quality always wins. Within a short span of time, our Paper Bag making machine have gained industry trust and credibility by becoming one of the preferred brands among the other competitors. Unlike others we manufacture everything from the scratch so we have distant advantages among our competitors we can deliver exactly what customer demands, we can customize according to any custom specifications within a short time at affordable cost.

Fully Automatic Shopping Bag Machine (TMPB 001)

Power for 4 Colour Machine	5 HP 440V
Power for 2 Colour Machine	3 HP 440V
Inking System	Water Based Ink
Printing Unit Attachable	Double Colour or Four Colour
Gum Type	Water Based Ordinary Binding Gum
Gum Tank Capacity (Centre)	2 Litre
Gum Tank Capacity (Tail)	5 KG
Curb Weight	1700 KG (Approx.)
Plates and Gears	6 Set Attached
Motor	Digital Counter with Batch Counting
Motor	3 HP 230V or 440V
Production per Hour	5000 to 12000 Bags
Paper Roll Size	Up to 1000 MM
GSM of Paper	40 to 140 GSM
Strength of Paper	16 BF to 38 BF
Paper Bag Size	W 10 CM - 42 CM \| L 15 CM - 60 CM

Bakery & Medicine Cover Making Machine (TPPB 002)

Power for 1 Colour Machine	2 HP 230V or 440V
Power for 2 Colour Machine	2 HP 230V or 440V
Printing Unit Attachable	Single Colour or Double Colour
Gum Type	Water Based Ordinary Binding Gum
Gum Tank Capacity (Centre)	1 Litre
Gum Tank Capacity (Tail)	3 KG
Curb Weight	900 KG (Approx.)
Plates and Gears	6 Set Attached
Motor	2 HP 230V or 440V
Production per Hour	12000 to 18000 Bags
Paper Roll Size	Upto 500 MM
GSM of Paper	40 to 100 GSM
Strength of Paper	16 BF to 28 BF
Paper Bag Size	W 6 CM - 20 CM \| L 9 CM to 30 CM

V Bottom Bakery Cover Making Machine
It is the most advanced and sought-after fully automatic high-speed V Bottom Paper Bag Making Machine which essentially uses primary color paper rolls such as Kraft paper, striped brown paper, slick paper, food coated paper, medical paper to mention a few. The entire bag-making process consists of various steps such as side-folding, side gluing, bottom gluing, bag forming and delivery of the finished product, all done at a single time. This machine is highly advanced and comes with the latest features which allow ease of operation and high efficiency. Due to its high stability and speed, the machine is ideal for making and manufacturing bags of different kinds and strengths.

Key Elements :

The machine has high speed and increased stability thanks to Aluminum Drum V3.0.
With sharp and bold knives, there is a perfect cut every time.
The high-end electrical panel is designed along with standard components using a Delta drive.
The amount of glue used is completely under control with the upgraded Glue Tray.
For smooth and effortless printing, the high-quality printing capability of Anilox Rollers is used.
For the long life and rigidity of the machine, EN-D Metal is used for gears.
Motor forms the major component of the machine and hence the 3HP motor High Quality brand is used which generates 1440RPM.
Bags of various widths can now easily be done as change over time is very less.

Shopping / Carry Bag

This Model Machine are used to make Textile Bags, Shopping Bags, Bakery Bags, Grocery Bags etc... Since this machine can do Starting from 10 x 15 cm to 42 x 60 cm this machine can do more variety of sizes. This can also do gusseted bags.

Bakery / Grocery Covers

This machine is commonly used to make bakery covers and grocery covers i.e. medium size covers. This machine can also run Fancy covers and medical covers. This machine can do gusseted covers.

Medicine Covers

This machine is commonly used to make medical covers i.e. small size covers. This machine can also run Fancy covers and medical covers.

Butter Paper & Aluminum Sheet Rewinding Machine (TPBA 002)

Material	Aluminium House Foil \| Butter Paper
Usage/Application	Industrial
Machine Weight	500 KG (Approx)
Voltage	240 V
Phase	Single Phase
Control Panel Type	PLC
Motor Power	1.5 HP
Capacity (Products Per Hour)	110 Roll
Condition	New
Power Source	Electric
Automatic Grade	Automatic
Production Capacity	1100 Roll/8 Hours

Food Paper Rewinding Machine is specially designed for high speed rewind the Jumbo Roll of Food paper into a smaller diameter roll with a paper core.

Dining Table Roll Making Machine (TPDT 001)

Step into the future of sustainable dining with our Dining Paper Roll Making Machine. This Paper Roll Manufacturing Machine is designed to produce high-quality dining rolls with efficiency and precision. The Dining Roll Production Machine features automatic operation, reducing labor costs and increasing production speed. For businesses looking to scale up their operations, our High Capacity Paper Roll Machine is the perfect solution. As a trusted TraMax Dining Table Paper Roll Machine Manufacturer, we provide machines that are durable, reliable, and built to last, ensuring that you get the most out of your investment.

A4 Sheet Making Machine (TPA4 001)

Voltage

Rated Power

Driven Type

Power Automatic Grade

Production Capacity

440V

5-7 KW

Elecric

6 HP

Fully Automatic

A4 paper cutting machine ( A4 paper sheeter )is suitable for cutting big rolling packaging materials such as paper, paper-plastic, multicolor laminated material,etc.1.It adopts PLC touch screen control, servo motor for controlling constant-length cutting.2.it with slitting knives to slitting then cut to have different sizes of paper like A4, A3, A2, A1 or any other sizes .width and length can be both adjustable
3. It adopts pneumatic, photoelectric sensor for controlling transmission system, with photo, electric, gas together, it has the functions of easy operation, high precision, good stability, low noise
4. This machine has the functions of the frequency converter timing device, auto-mastic counting, stop working by alarm magnetic powder tension control, can be cotted vertically, adopt blower to get rid of waste.

Rolling and releasing can be in front of or at the back of machine.
Adopts independent master control screen, make operation more flexible and even easier.
Automatic deviation-rectifying of releasing, photoelectric eye is suitable for tracking the edge and color of transparent material.
Releasing tension adopts magnetic powder clutch control.
Rolling adopt magnetic clutch control.
Counting meter of material moving length automatically.
